Yno 219 - Northern Hawk

Hull no 219 built 1990 by Ulstein Hatlø AS, Norway for Oceantrawl Inc., Seattle WA. USA

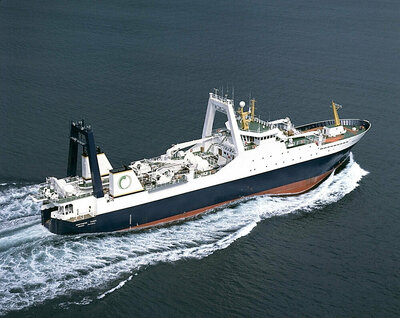

Yno 219 Northern Hawk

CLASSIFICATION
The conversion is designed by Guido Perla & Associates, Inc. and executed by Ulstein Hatlø AS. The vessel conforms to Det Norske Veritas Class + 1A1 - Ice C - Stern Trawler - E0 - USCG's Rules and Regulations for Uninspected Vessels and SOLAS 1978 (Cargo Vessel).



MAIN DIMENSIONS
Length over all: 104,06 m
Length between p.p.: 94,52 m
Breadth moulded: 15,85 m
Dept Main Deck: 8,30 m
Dept Upper Deck: 11,35 m
Design Draught: 6,09 m



TANK CAPACITIES
Fuel oil: approx. 1.325 t
Fresh water surimi: approx. 282 t
Fresh water service: approx. 129 t
Ballast water: approx. 301 t
Cargo Hold: approx. 2.319 t
Fish meal hold: approx. 836 t



SPEED
Trial speed: 15,7 knots



TECHNICAL DATA
BERGEN DIESEL Main engines BRM-8
2 x 3.235 kW - 750 rpm
ULSTEIN cp propeller:
Ø 4.100 mm 150 rpm, 4.853 kW
ULSTEIN/Lohmann Reduction gear. GVA 1250 C
ULSTEIN Propeller Nozzle: type 4100/0.5
ULSTEIN High-Lift Flap Rudder
Tenfjord Steering Gear: Type 18M 260
ULSTEIN Bow Thruster:
1 x 150 TV - 800 HP
Leroy Somer Shaft Generators:
2 x 757kW - 1800 rpm
Caterpillar:
Generator Engines 3508 2 x 757 kW - 1800 rpm
Generator SR4: 2 x 893 kWV - 1800 rpm
Emergency Generator set 330 4T with SR 4 generator
125 kVA - 1800 rpm
NORWINCH Trawl Winches: 2 x 49,2 t
NORWINCH Sweep Line Winches: 2 x 33,5 t
NORWINCH Gilson Winches: 2 x 50,5 t
NORWINCH Cod End Winches 2 x 50,5 t
NORWINCH Outhal Winch 1 x 6,0 t
NORWINCH Net Drum Winch: 1 x 15,8 t
NORWINCH Net Drum Winch: 2 x 40,3 t
NORWINCH Hydralift Deck Cranes: 3 x 4,0 t
NORWINCH Hydralift Deck Cranes: 2 x 6,0 t
Sabroe:
Cargo Freezing Plant 60 T / 24 HR
Provision Refrigerating Plant
Mac Gregor Navire
3 off Pallet Handling Cranes in Cargo Hold
2 off Pallet Lifts for Cargo Hold
Shin Nippen Giken: Factory Processing Plant
Carnitech: Processing Plant
PEILO: Switchboard and consoles



ELECTRONIC EQUIPMENT
NAVIGATION:
Radar: Furuno, FR2030 S-Band
Radar: Sperry, 3400 M X-Band
Loran C /GPS Northstar NS 9000
Loran C 2 x Northstar NF-800
Color video plotters 2 x Raytheon NWU-53
COMMUNICATION
Sperry MCS2B Sat comm. system
3 x Stephens SEA-156 VHF

Radiotelegraph: ITT McKay MRU 29B
Radiotelegraph: 2 x Skanti TRP-8258-S SSB
TRAWL CONTROL:
NORWINCH autotrawl
Trawl monitoring system: Simrad FS-3300
Trawl eye system: Simrad FR-500



ACCOMMODATION
Accommodation for 101 crew members in:
- 7 single cabins
- 19 double cabins
- 11 4-men cabin
- 1 12-men cabin
In addition:
- 1 single cabin for Owners
- 1 double cabin for Buyer
- Hospital for 2 persons
- Mess
- Lounge

Other shipnames: "State Trust"
2017: Still active - IMO 8030489. Owner and manager: Costal Villages, Anchorage AK, USA. Flag: Seattle WA, USA.
