Aegir

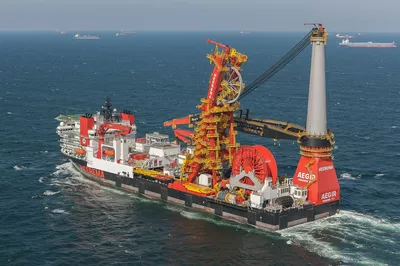

Originally delivered as a deep water construction vessel based on the ULSTEIN SOC 5000 design. The Aegir has later been converted by Ulstein to a fast sailing, DP offshore heavy lift vessel.

Design

DLV5000

Built by

DSME, South Korea

Year

2013

Owned by

Aegir

Designed by

Ulstein Design & Solutions BV

Ordered by

Heerema

Operated by

Heerema

IMO Number

9605396

Principal dimensions

Length:
211.5 m
Beam:
46.2 m
Dead weight:
N/A tonnes
Draught (max):
N/A m
Speed (max):
12 kn
Accommodation:
305 POB
Deck area:
N/A sqm

Note: Subject to selected variant configuration

Capacities

Design:
Customised SOC 5000
Pipelay tower J-lay operations:
2,000 mT
Main crane operating down to:
- 3.500 m
Main crane lift capacity :
4,000 tonnes
ROVs:
2

Featured solutions

Ship history

The vessel was built at the DSME shipyard in South Korea, where the construction started in August 2011. After final outfitting on the lay system in Rotterdam in spring 2013, the vessel started work for Heerema.

The Aegir joined the Heerema fleet back in 2013 as a deepwater construction vessel featuring J-lay and Reel-Lay capabilities via a large moonpool. Equipped also with a large heavy lift crane, she was the first Reellay vessel to use a portable reel system, saving time that is typically taken by sailing back and forth to a shore base.

In October 2013, ‘Aegir’ was awarded KVNR’s (the Royal Association of Dutch Shipowners) Shipping Award.

SHIP CONVERSION:

2018: After Heerema Marine Contractors’ strategically decided to reposition its core business to Heavy Lift, Decommissioning and Renewables, Ulstein Design & Solutions B.V. was contracted to provide design and engineering services to convert the Aegir into a fast sailing heavy lift vessel.

2020: The Aegir vessel is now transformed into a dedicated offshore heavy lift vessel. Aegir’s already massive 4,000-ton main crane and the fact that her hull design is based on Ulstein’s SOC 5000 heavy lift vessel design, is a key benefit in this development.

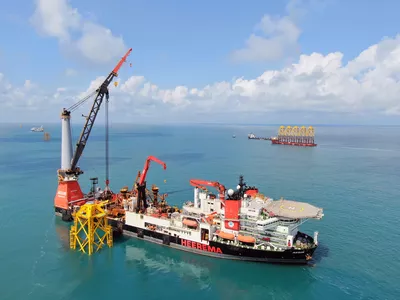

An update in November 2020 states that the Aegir has successfully completed the installation of North Oil Company’s Al-Shaheen Gallaf 1 Project. Heerema was contracted for the transportation and installation of three topsides and three bridges by PTSC M&C Vietnam, who fabricated the structures at their yard in Vung Tau, Vietnam. The work consisted of installing three topsides weighing between 2000 and 2500 metric tons and three bridges weighing between 700-1100 metric tons. These were installed onto pre-installed jackets in the Al-Shaheen field located around 80 km north of Ras Laffan, Qatar. Aegir arrived at block 5 of the Al-Shaheen on October 19, and began installing job. The Al-Shaheen oil field is Qatar’s largest and has a water depth of 60 meters with facilities consisting of 33 platforms and more than 300+ wells. The Al-Shaheen Gallaf 1 scope will support the North Oil Company’s ongoing development of the Al-Shaheen field. (Source: Nauticus Live)
