Safeen 3000

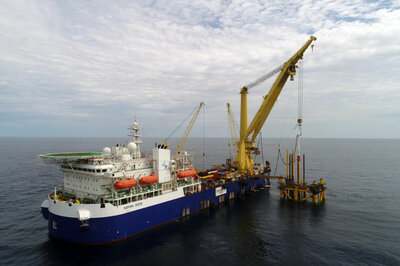

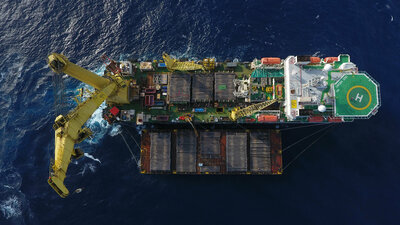

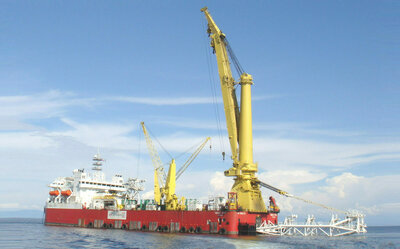

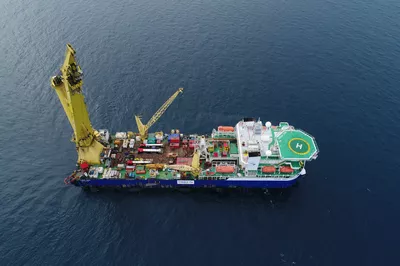

Safeen 3000 (former: Sapura 3000) is a combined heavy lift/pipelay barge equipped with a heavy lift mast crane able to lift 3,000t fixed over stern at 27 metres, or 2,200t fully revolving at 31 metres. The vessel has DP2 class and can keep a transit speed of 8 knots. Based on a customised ULSTEIN Seabarge 3000 design.

Vessel type

Heavy lift

Built by

Sembawang Shipyard Pte. Ltd, Singapore

Year

2008

Owned by

Safeen Feeder Company

Designed by

Ulstein Design & Solutions B.V.

IMO Number

9391270

Principal dimensions

Length:
151.2 m
Beam:
41 m
Dead weight:
10 000 tonnes
Draught (max):
8 m
Speed (max):
9.4 kn

Note: Subject to selected variant configuration

Capacities

Crane fixed over stern at 27 m:
Exceeding 2,700 t
Crane fully revolving at 31 m:
2,000 t
Transit speed:
8 kn

The ship design has been developed by Ulstein Sea of Solutions, now Ulstein Design & Solutions B.V.

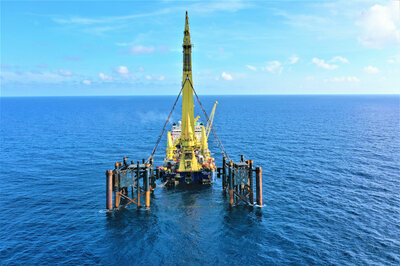

2020: This year, the Ulstein-designed Sapura 3000 was performing an unusual operation by wet towing of jackets in Thailand. Each jacket was lifted off the seabed and transported 100nm while hanging in the crane with the jacket feet still in the water.
Ulstein Design & Solutions B.V. made the assessments for the hull and stability limitations for the transportation of seven jackets, and Thai television reported on this operation:

2022: The company's subsidiary has entered into a memorandum of agreement with Safeen Feeder Company, a company in the Abu Dhabi Ports group of companies, for the disposal of the vessel. The vessel has changed its name to 'Safeen 3000'.
