Shore power capacity

Efficient shore power solutions for modern ship needs.

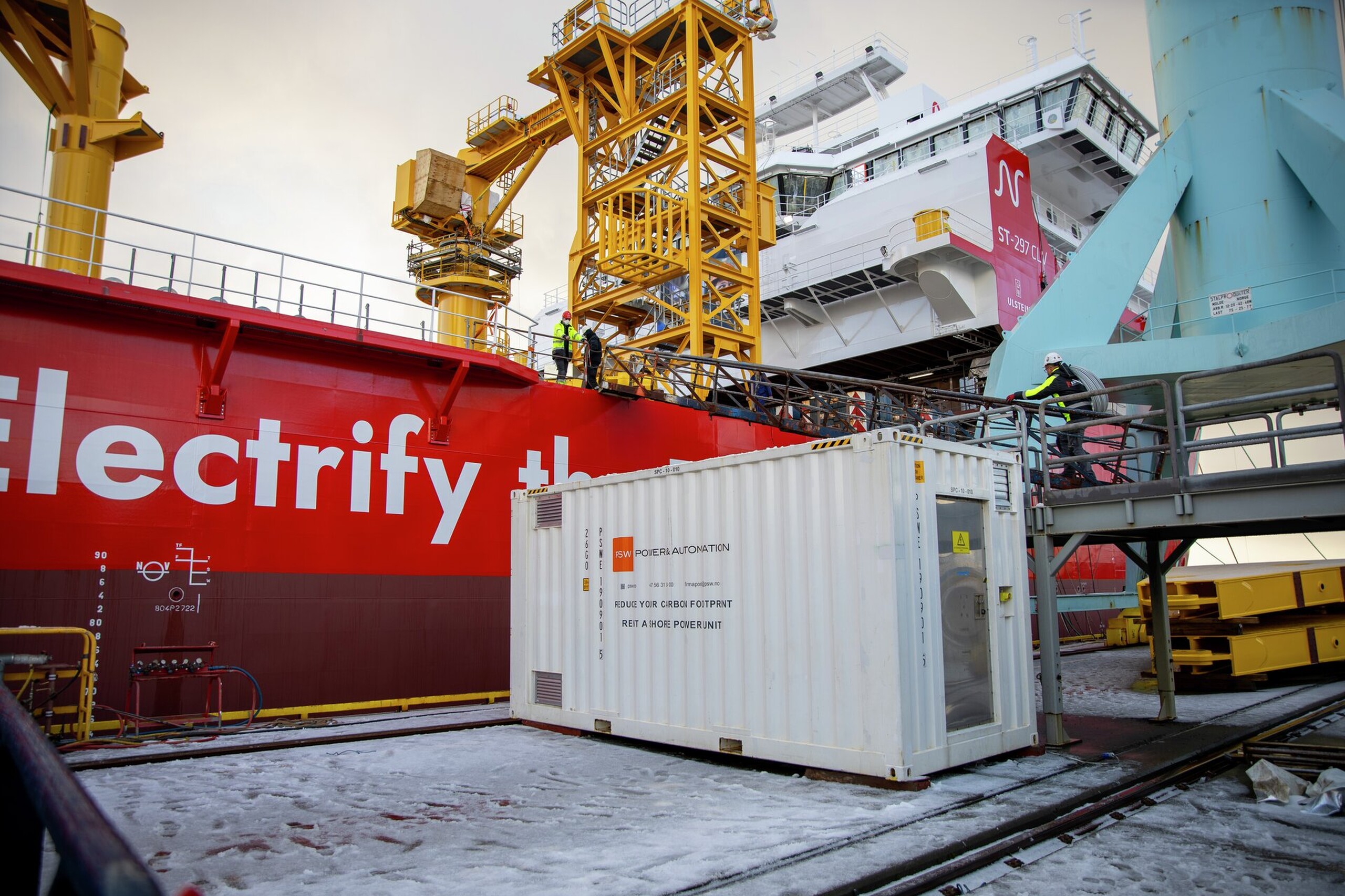

Grid Converters and shore power capacity (IEC 80005‑3)

Our grid converters can deliver up to 1400 A together, in accordance with the IEC 80005‑3 shore power standard, providing flexible, high-capacity power. With direct connection using single‑core cables, the system can deliver up to 2000 kVA / 1880 kW (690 V, synchronised). The grid converters can be positioned at quay 1, quay 2, the outer dock, and the inner dock, thereby supporting all central operational areas.

Connection according to the IEC 80005‑3 shore power standard

Grid converter capacities (single mode)
• 690 V: 835 kVA / 700 A
• 440 V: 533 kVA / 700 A
• 400 V: 484 kVA / 700 A

Grid converter capacities (synchronised)
• 690 V: 1670 kVA / 1400 A
• 440 V: 1065 kVA / 1400 A
• 400 V: 968 kVA / 1400 A

Direct connection to the grid converter (single‑core cables with cable lugs)

Capacities (single mode)
• 690 V: 837 A – 1000 kVA (max. 940 kW)
• 440 V: 837 A – 637 kVA
• 400 V: 837 A – 580 kVA

Capacities (synchronised)
• 690 V: 1674 A – 2000 kVA (max. 1880 kW)
• 440 V: 1674 A – 1274 kVA
• 400 V: 1674 A – 1160 kVA

Placement options

The grid converters can be set up in the following locations:
• quay 1
• quay 2
• outer Dock
• inner Dock
