Bravenes

Subsea rock installation vessel, suitable for installation of a wide range of rock sizes through a fallpipe in the moonpool, through a fallpipe over the side or through a tremie pipe over the side. With a DW of 14,000t, a length of 154 m and a beam of 28 m, the vessel can operate in depths of more than 600 metres.

Built by

Zhejiang Shipbuilding Co.

Year

2017

Owned by

Van Oord

Designed by

Ulstein Design & Solutions BV

Operated by

Van Oord

Principal dimensions

Length:
154.4 m
Beam:
28.0 m
Dead weight:
14,000 tonnes
Draught (max):
8.0 m
Speed (max):
13 kn
Accommodation:
60 POB

Note: Subject to selected variant configuration

Capacities

Design type:
Subsea rock installation vessel (SRI)
Classification:
Bureau Veritas
Moonpool:
6.3 x 6.3 m
Installed power:
2 x 3,840 and 2 x 2,880 kW
Ice Class:
1A - PC7

Classifications

  • CLEAN DESIGN
  • Green passport
  • ICE-1A

Featured solutions

Ship history

Working in close cooperation with Van Oord, this is the first fully integrated design where Ulstein has been responsible for the development and integration of both the mission equipment and vessel design. SRI vessels stabilise and protect subsea pipelines, cables and other structures at the sea bed.

Rocks can be installed through a fallpipe inserted through the moonpool, through a fallpipe over the side or through a tremie pipe over the side. The vessel can perform subsea rock installation close to offshore platforms.

The DP-3 vessel is a unique design featuring the distinct X-BOW® hull line and meets the requirements for Clean Design Notation, Green Passport and Ice Class 1A – PC7. The vessel and its equipment are designed for year-round operability in harsh weather and high-sea states.

Ulstein has also supplied the main Fall Pipe Deployment system and the majority of the ancillary systems of the rock installation tower. Ulstein puts a strong focus on simplicity, by mechanizing the systems as much as possible, enabling higher levels of safety and control and as such minimising human interaction during the deployment and recovery of the fall pipe.

Combined with its ability to load and install large rocks, this makes the Bravenes ideal for the offshore wind and cable market.

September 2015: First steel cut

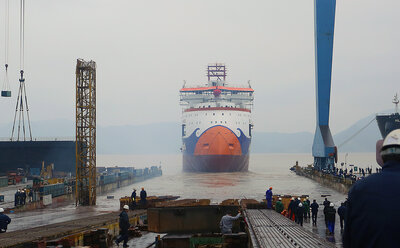

December 2016: Launch
End 2017: Construction completed. Sailed to Xiamen for installation of the innovative Fall Pipe Deployment system. Final outfitting/commissioning at Damen Shiprepair Rotterdam
May 2018: Outfitting and commissioning completed. Naming ceremony on 21 May.

End May 2018: The vessel will set course for Norway to work on various North Sea projects. From mid-July, she will carry out stabilisation operations for Nord Stream 2, the gas pipeline that will stretch from Russia to Germany.

IMO Number: 9756200

Film from launch

Introductory film: How does the vessel work? (CR: Van Oord)
