RoPax portfolio

Ulstein has developed a range of variously sized X-BOW® vessels for the RoPax market.

The robust X-BOW® is a proven solution used in several types of ships, and leads to improved seakeeping, reduced speed loss and lower fuel consumption.

The X-BOW® has several advantages, and of particular interest to the RoPax market is the reductions in movements and speed loss in head seas which help to keep schedules.

The volume gained in the bow area contributes to increased cargo carrying capacity with additional lane metres as well as larger accommodation area.

Vessel designs

Name Length Beam Dead weight Draught (max) Speed (max) Accommodation Deck area
RX101 89 m 17.5 m 1800 tonnes 4.5 m 13 kn - -
RX102 90 m 17.5 m 1500 tonnes 5.5 m 15 kn - -

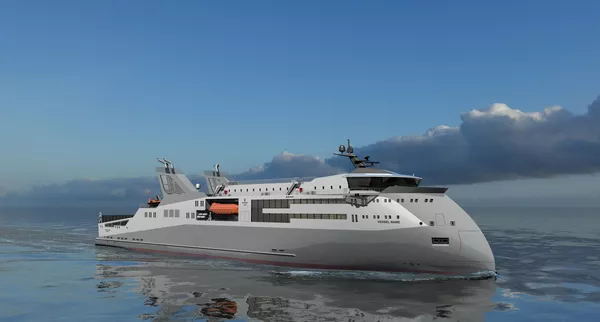

RX103 120-135 m 20 m 2700 tonnes 5.7 m 15 kn - -
RX104 185 m 25 m 5400 tonnes 6.5 m 21 kn - -
