![ULSTEIN SX228 as seen from starboard fore, a cable layer for fibre optic cabling.](/imager/images/Vessel-Designs/8661/SX228-ULSTEIN-v3-May21n-Sea-SB-Fore-Low_2021-05-27-085709_wrwy_883c09938d961e3eaa87f27a0023f856.jpg)
SX228 Fibre CLV
The SX228 cable layer has a large deadweight of 8,400t and a cable capacity of 5,500t. Being optimised as a fibre cable layer, the vessel is also prepared for future operations with power cable including strengthening for underdeck carousel in the forward cable tank.
Primary Specifications
Length
121.7 m
Beam
23 m
Dead weight
8,400 t
Draught (max)
7.2 m
Speed (max)
14 kn
Accommodation
80 POB
Cable capacity
5,500 t
Note: Subject to selected variant configuration

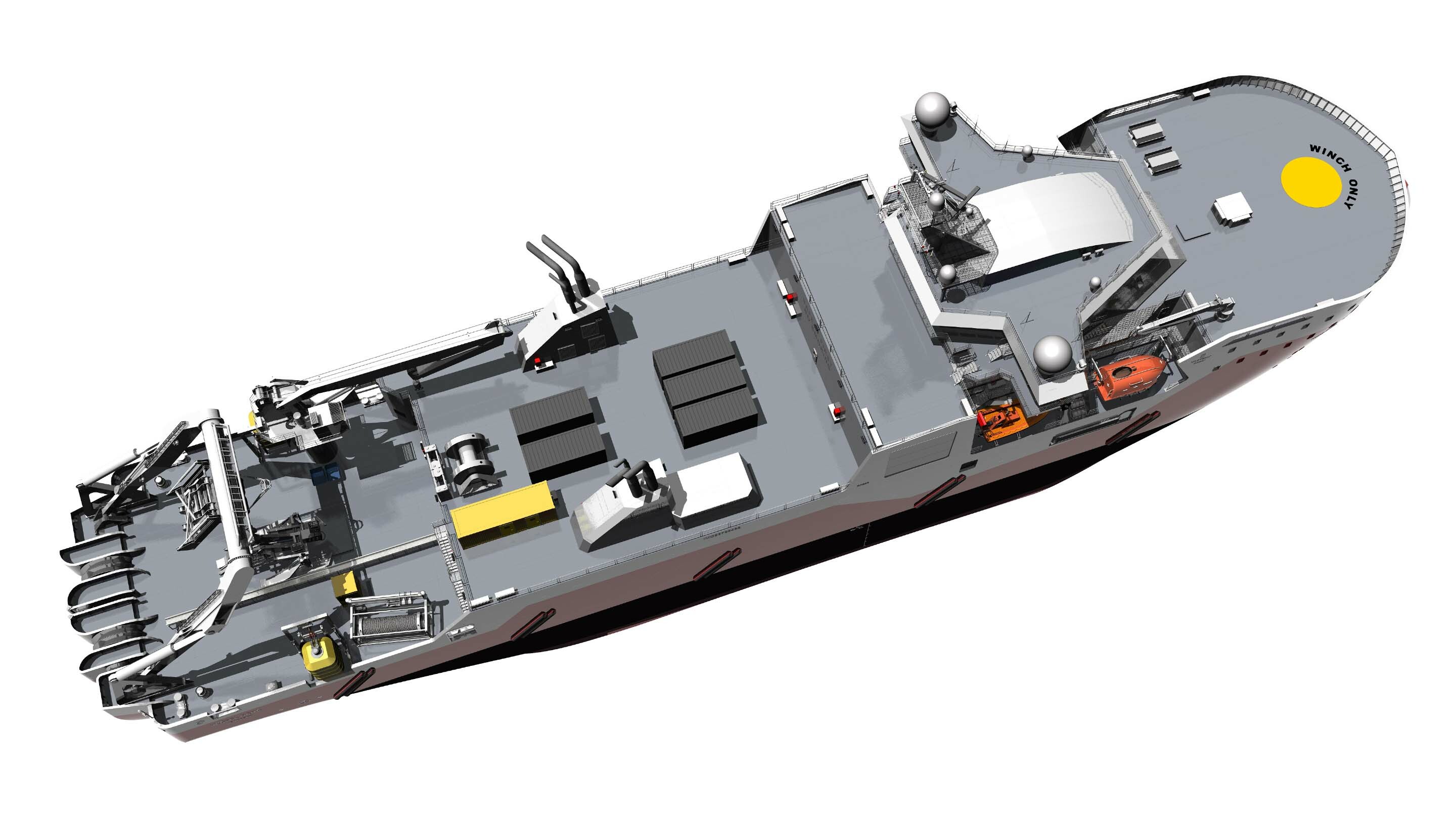

Two cable lines are placed inside an enclosed working area, and the vessel has an ROV hangar for the trencher.
