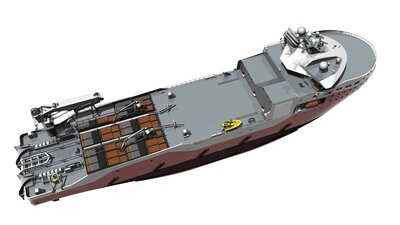

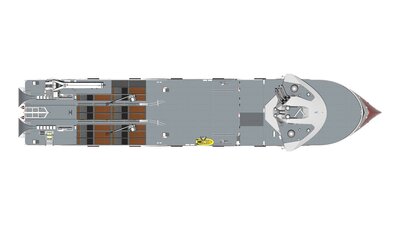

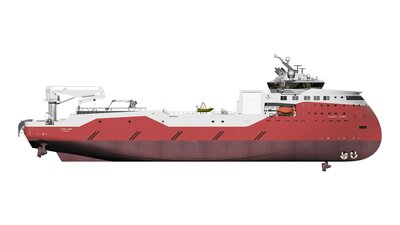

SX238 Power Inter-array CLV
This flexible platform is designed for inter-array operations, reaching a perfect compromise between vessel size and cable capacity. The vessel is fitted with two under-deck carousels, enabling cable capacities of up to 6,000 t. The platform is fitted with a tailor-made cable protection system (CPS) module for effective mobilisation and installation.
Primary Specifications
Length
128.5 m
Beam
24.0 m
Dead weight
8600 t
Draught (max)
7.6 m
Speed (max)
14.0 kn
Accommodation
76 POB
Cable capacity
6,000 t
Additional Data
Cable carousel 1 under deck
Ø20.5
Cable capacity 1 under deck
3,000 t
Cable carousel 2 under deck
Ø20.5
Cable capacity 2 under deck
3,000 t
CPS capacity
500 t
Battery powered
Note: Subject to selected variant configuration
Turning visions into reality
Optimise inter-array operations with the SX238 platform that perfectly balances vessel size and cable capacity. We can tailor our designs to match your exact requirements.
