Guo Hai Min Xiang

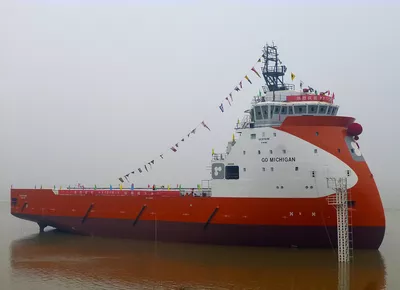

First name: Go Michigan. A medium-sized platform supply vessel of the proven PX121 design, capable of supporting offshore activities which are being carried out further from shore and in deeper waters. The vessel can accommodate 30 persons and keep a speed of approx. 14.5 knots.

Vessel type

Platform supply

Design

PX121

Built by

Wuchang Shipbuilding Industry Co, Ltd., China

Year

2016

Owned by

Sinoocean

Designed by

Ulstein Design & Solutions AS

Ordered by

Otto Offshore Ltd.

Operated by

COSL

IMO Number

9755385

Principal dimensions

Length:
83.4 m
Beam:
18 m
Dead weight:
4000 tonnes
Speed (max):
14.5 kn
Accommodation:
30 POB
Deck area:
840 sqm

Note: Subject to selected variant configuration

Capacities

Fresh Water:
1,061 m³
Fuel Oil:
1,329 m³
Liquid mud:
1,294 m³
Brine / slop:
1,294 m³
ORO:
662 m³
DW / ballast:
1,571 m³
Methanol:
155 m³
Base Oil:
267 m³
Cement / barite:
255 m³
Slop:
506 m³
Foam:
8.8 m³

A medium-sized platform supply vessel (PSV vessel) of the proven PX121 design. The PX121 vessels originally built for Otto Offshore are capable of supporting offshore activities which are being carried out further from shore and in deeper waters. They can accommodate 30 persons and keep a speed of approx. 14.5 knots.

A vessel of the PX121 design has an overall length of 83.4 metres, a beam of 18 metres and a load capacity of approx. 4,000 tonnes. The vessels are equipped with the most modern solutions for DPII (dynamic positioning), oil recovery and fire-fighting. The ships are recognised as medium-sized PSVs and have a cargo deck of approximately 850 square metres.

These vessels can carry flexible loads. In addition to tanks for various contents such as oil, water and drilling fluids, they have four stainless steel tanks for flammable liquids or corrosive chemicals (LFL tanks). The vessels are certified by DNV and carry the ‘Clean Design’ notation.

Favourable combination
The PX121 vessels boast a performance normally expected from a larger PSV. Being able to do this at a medium-sized PSV cost, with reduced emissions and fuel consumption, the shipowner gets a favourable combination of two market areas.

The vessels are of the X-BOW® hull line design, which is efficient on all draughts. A factor critical for PSVs, as they frequently operate with varying draughts. The X-BOW® has unique and documented qualities in head seas, in which the bow shape eliminates slamming and reduces bow impact, noise and vibration. This leads to better performance and increased operability, increased crew comfort and safety and reduced fuel consumption. Each ship will be equipped with a dynamic positioning system Class II and meets the requirements of Comfort Class.

The contract with Ulstein includes the deliveries of design, engineering and main equipment. An extensive delivery from Ulstein Power & Control includes integrated control systems, bridge (radio, navigation), switchboard, diesel-electric propulsion and frequency converters and communication systems.

The vessels will be prepared for offshore crane and mezzanine deck for ROV.

Ship history

Four sister vessels:

  1. Guo Hai Min Xiang (Go Michigan)
  2. Guo Hai Min Le (Go Matilda)
  3. Guo Hai Min Rong (Go Mundara)
  4. Guo Hai Min Yao (Go Maluka)

All four vessels are now in the ownership of Sinoocean, and will be operated by COSL.
