Power Management System (PMS™)
Keeping a vessel's generators and switchboards balanced gets complex fast, whether you're specifying power management for a newbuild or upgrading an ageing system, and a missed fault can mean a blackout. ULSTEIN PMS is a Power Management System (PMS) that gives complete control of your vessel's power generation from one interface, fully integrated in our X-CONNECT® platform, for both newbuild and retrofit projects. It gives instant feedback on failures as they happen, helps prevent and recover from blackouts, and supports smart circuit breakers that free up switchboard space, for a safer vessel at a lower lifecycle cost.
Key benefits ULSTEIN POWER MANAGEMENT system
- Complete control
- of the power generation with an exceptional user interface
- Instant feedback
- on system status, alterations and failure scenarios
- Simple change
- of system setup, such as start sequence and load thresholds
- Fully integrated
- in X-CONNECT®
- Supports smart circuit breakers
- – to reduce switchboard space and installation work
Enhance vessel safety and efficiency with the ULSTEIN Power Management System
The ULSTEIN Power Management System is a versatile power management system suitable for small and large vessels, regardless of complexity. This modern system enhances vessel operations' safety and fuel efficiency.
As part of the X-CONNECT® platform, the ULSTEIN PMS is fully integrated and seamlessly accessible via a user-friendly interface. It offers many functions, from simple tasks like diesel generator start/stop commands to more advanced functions like automatic start-up sequences and black-out prevention and handling.
The ULSTEIN Power Management System is designed for safe and efficient vessel operations. To meet the varied requirements of different customers and class societies, the ULSTEIN PMS supports system segmentation. Furthermore, the system's topology and hardware flexibility allows minimal installation space, hardware usage, and location.

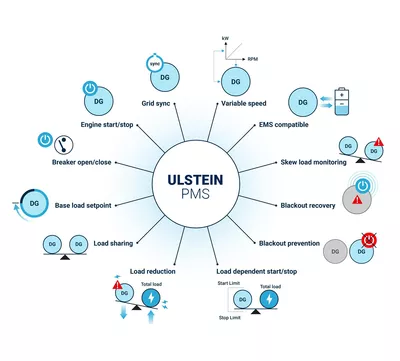

Features
When the ship propulsion system is powered by battery or other alternative power sources, an Energy Management System is required. X-CONNECT® provides an integrated Energy Management System or remote control of 3rd party EMS. Read more about ULSTEIN EMS here.
ULSTEIN PMS provides load sharing between diesel generators based on compensated droop philosophy.
Tripping consumers with low priority to avoid blackout.
Prepares generator to manage equipment with heavy loads before they are actually activated, to prevent blackouts. Example of such consumers are bow thrusters, fire fighting pumps etc.
Status information from all components in the system, such as circuit breakers, bus-ties and generators. The system also features pre-warning handling, such as start/stop errors and breaker status.
Monitoring of active and reactive load.
Preventing operator to create an unintended blackout. System detects partial and total blackout, and automatically recovers power generation.
User can force the system to set a desired limited number of generators to be connected to the power grid.
Manually start/stop generators.
Start sequences according to user input.
Load dependent start/stop order in accordance with load conditions and user input.
Automatic transitions between power plant configurations for different vessel operations

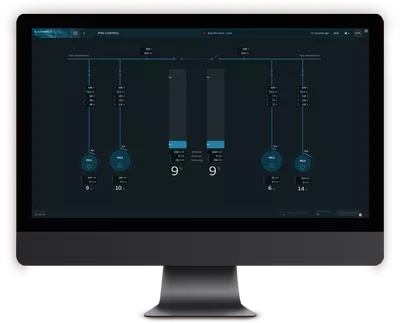

ULSTEIN POWER MANAGEMENT mimics
- EMS GUI - Grid support unit
ULSTEIN POWER MANAGEMENT
Prepare your ship for a digital future with a
ULSTEIN POWER MANAGEMENT system.
Get your whitepaper (registration required).
